Olympic Doll E / Test E Electric Kiln

Olympic Doll E / Test E Electric Kiln

Regular price $679.00 USD
Regular price $975.00 USD Sale price $679.00 USD
Sale Sold out
Shipping calculated at checkout.
Phase
Voltage
Controller

DOLL E/TEST E electric kiln equipped with 3K-CF electronic controller 120 volt


Inside dimensions: Oval - 11.25" wide x 7" front-to-back x 9" high, .3 cu. ft., fires to cone 10/2350°F


Two names for one kiln? Initially the Doll E was a primary kiln purchase for artists making dolls and later became a hot ticket item for labs, universities testing glaze, tiles, etc. because of the oval design. Olympic kept both names for the model so that customers who purchase the model for either reason would recognize it if they needed future purchases or parts.


120 volt models come equipped with pilot light, metal stand, stainless steel jacket, and Bartlett 3K-CF electronic controller.  Data is entered by scrolling through the up and down arrows for the desired cone fire or ramp/hold programming.

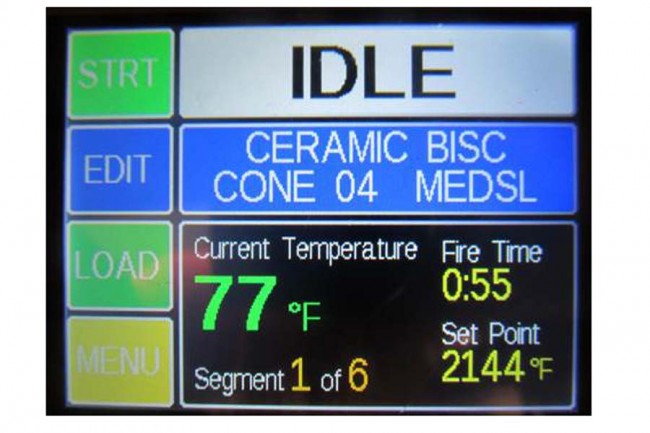

Options include upgrading to the Genesis touchscreen controller or the 12 key digital Bartlett V6-CF controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step and many more for precise firings every time.  Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy look up of temperature and cone number equivalents.  Other options available are a blank or bead collar, kiln vent and much more!


Furniture Kits for 120 volt models provide 2-3 layers of shelving for stacking ware, assorted small square posts and a one pound bag of kiln wash.  Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Model DOLLE/TEST E Wiring Specifications
Equipped with Lid Lift Assist N/A 120 Volts
Inside Chamber Dimensions w x d x h (inches) 11.25 x 7 x 9 15 Amps
Cubic Feet 0.3 1800 Watts

Outside Dimensions with Stand or Frame w x d x h (inches)

17 x 17.5 x 22.5 20 Amp Breaker
Brick Thickness 2.5” Plug Configuration: NEMA 5-15
Maximum Temperature Cone 10 - 2350°F/1288°C Copper Wire Size:  #12, #10 if circuit is longer than 40'
